| Filling Product | Liquid & Paste |
| Pouch Pattern | 4-side seal |

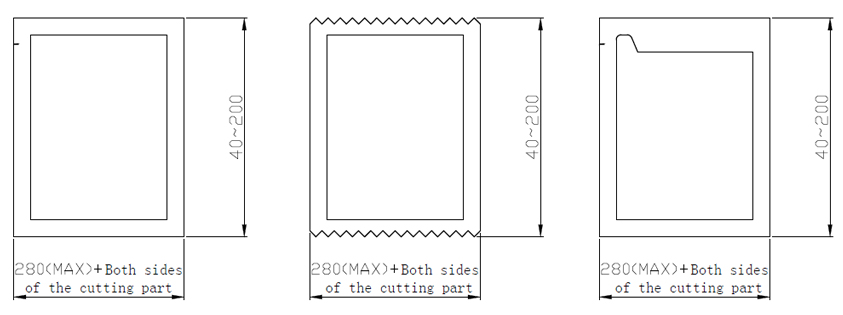

| Pouch Height Range |
2divisions
100-200mm 3divisions 80-150mm 4divisions 55-100mm 5divisions 40-60mm According to the width of horizontal sealing pouch height range is different. |
| Pouch Width | 480mm(MAX)+Both sides of the cutting part |
| Packaging Capacity |
20-150
pouches per minute(1-lane)×lane amount (depending on pouch height,film composition,product property,etc) |
| Filling Capacity |
1-50ml (depending on product property and filling device to be used) |
| Applicable Film Width | Maximum 960mm+ |
| Maximum Film Roll Dia | ￠400mm |
| Power Consumption | 3-phase 380V 16kw |
| Air Consumption | 300L/min（0.4-0.5Mpa） |
| Machine Dimensions | 1650mm(L)×2550mm(W)×2400mm(H) |
| Machine Weight | Approx.2300kg |
